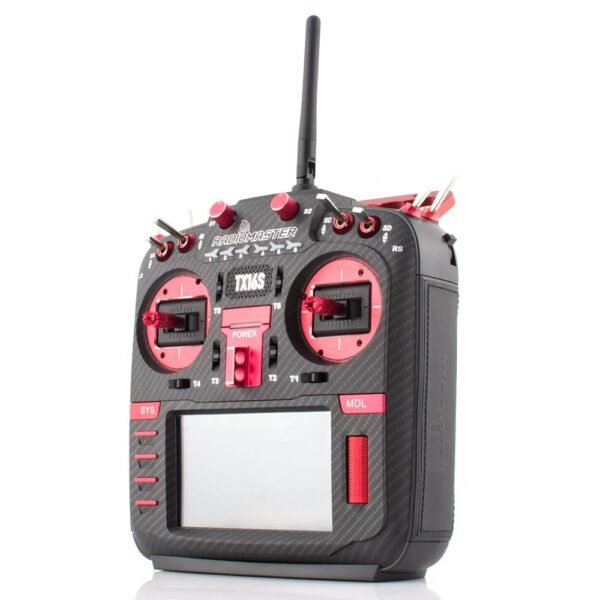

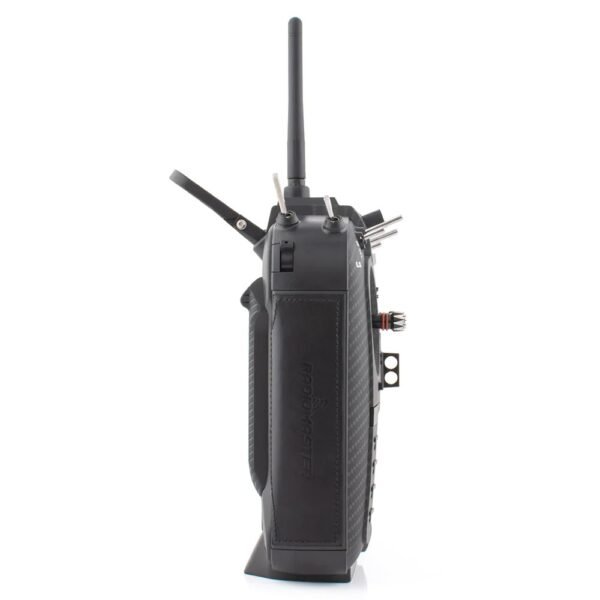

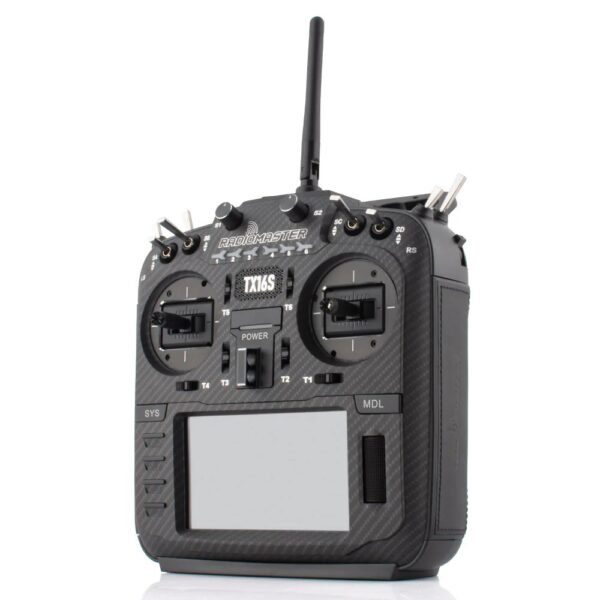

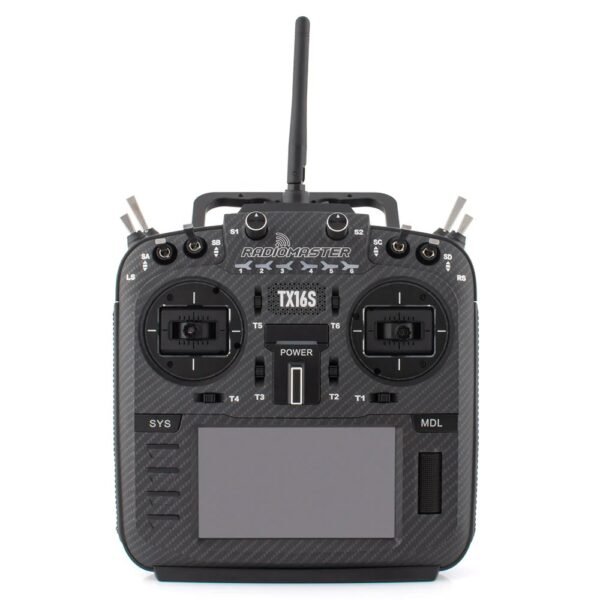

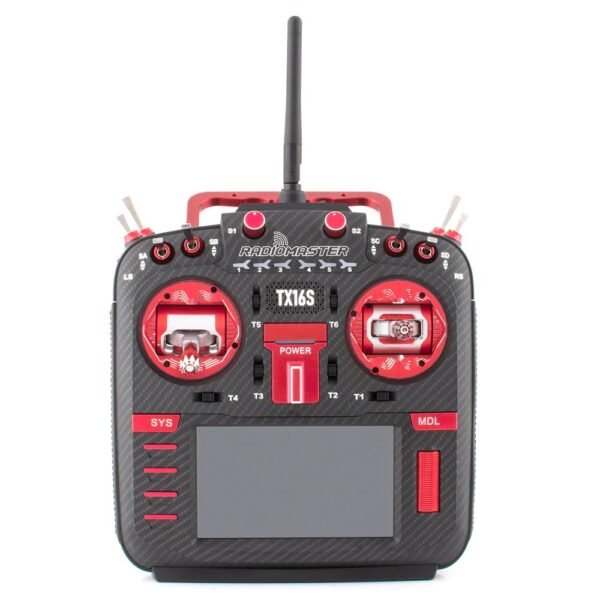

RADIOMASTER TX16S Mark II Max Radio Controller (M2) Transmitter

Features:

• Improved internal circuitry and optimized power supply.
• New charge circuitry with integrated reverse-polarity protection.
• Optimized charge IC now allows up to 2.2A internal USB-C charge current.
• Rear-mounted audio jack provided headphone output.
• V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
• Optional high/low rear grips are included for improved ergonomics.
• Improved S1/S2 knobs with clear center detents.
• Improved LS/RS Sliders with smoother feel and better center detents.
• Redesigned battery cover for improved battery access.
• Retooled body shell with improved fit and finish.
• Trainer socket changed to standard TRS 3.5mm socket.
• Rear DIY Socket added for personalized mods.
• Improved internal plastics for better longevity.
• Available ELRS and 4in1 versions.

Specifications:

• Items: TX16S Mark II Max
• Size: 287x129x184mm
• Weight: 750g (without battery)
• Transmission frequency: 2.400GHz-2.480GHz
• Transmitter module:  Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)； Option 2: Internal ELRS (SX1280)
• Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
• SD card: 256MB by default, 8GB maximum
• Antenna gain: 2db (transmit power adjustable)
• Working current: 400mA
• Working voltage: 6.6-8.4v DC
• Remote control distance:> 2km @ 22dbm
• Radio firmware: EdgeTX
• Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
• Channels: Up to 16 channels (depending on the receiver)
• Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
• Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia;  Option 2: AG01 CNC Hall sensor
• Module Bay: JR compatible module bay
• Upgrade method: Supports USB-C online / SD card offline upgrade
